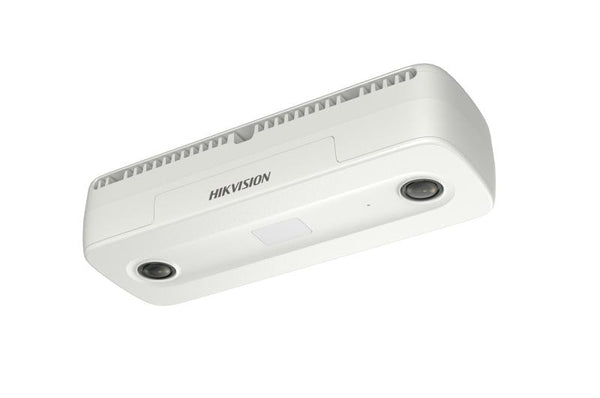

Hikvision DS-2CD6825G0/C-I(S) Dual-Lens People Counting Network Camera

Regular price Rs 27,500.00

Tax included.
  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 105 dB WDR technology
  • -V model: Water and dust resistant (IP67)
  •

  •

  •

  •
    • Camera
    • Image Sensor1/2.7ʺ Progressive Scan CMOS
    • Max. Resolution1920 × 1080
    • Min. Illumination

      Color: 0.005 Lux @ (F1.2, AGC ON), 0.0176 Lux @ (F2.25, AGC ON)

      B/W: 0.001 Lux @ (F1.2, AGC ON), 0.0035 Lux @ (F2.2.5, AGC ON)

    • Shutter Time1/25 s - 1/100,000 s
    • Day & NightIR Cut Filter
    • Lens
    • Lens TypeFixed focal lens, 2 mm
    • Focal Length & FOV2 mm, horizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112°
    • Lens MountM12
    • ApertureF2.25
    • Illuminator
    • Supplement Light TypeIR
    • Supplement Light RangeUp to 6 m IR range
    • IR Wavelength850 nm
    • Video
    • Main Stream

      50Hz: 25fps (1920 × 1080, 1280 × 720)

      60Hz: 30fps (1920 × 1080, 1280 × 720)

    • Sub-Stream

      50Hz: 25fps (704 × 576, 640 × 480)

      60Hz: 30fps (704 × 480, 640 × 480)

    • Video Compression

      Main stream: H.265+/H.265/H.264+/H.264

      Sub stream: H.265/H.264/MJPEG

    • Video Bit Rate32 Kbps to 16 Mbps
    • H.264 TypeBaseline Profile/Main Profile/High Profile
    • H.265 TypeMain Profile
    • Scalable Video Coding (SVC)H.265 and H.264 support
    • Region of Interest (ROI)4 fixed regions for main stream and sub-stream
    • Audio
    • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
    • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
    • Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHz/48kHz
    • Environment Noise FilteringYes
    • Network
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
    • Simultaneous Live ViewUp to 20 channels
    • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome (5.0)
    • User/Host

      Up to 32 users

      3 levels: Administrator, Operator and User

    • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log
    • ClientiVMS-4200, Hik-Connect
    • Web BrowserIE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11
    • Image
    • Image SettingsSaturation, brightness, contrast, sharpness are adjustable by client software or web browser
    • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by alarm input (-S)
    • Wide Dynamic Range (WDR)Digital WDR
    • Image EnhancementHLC, BLC, 3D DNR, defog
    • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
    • Interface
    • Ethernet Interface

      1 RJ45 10M/100M Ethernet port

      -IVSM, -IVM/ND: M12 aviation plug, 4-core 10M/100M Ethernet port

    • Built-in MicrophoneYes
    • Audio-S: 1 input (line in, two-core terminal block), 1 output (two-core terminal block), mono sound
    • Alarm-S: 1 input, 1 output (max. 24 VDC,1A)
    • RS-485-S: 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
    • Event
    • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
    • LinkageUpload to FTP/NAS, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
    • Deep Learning Function
    • People Counting

      Counts people entering and exiting separately

      Supports real-time uploading and uploading by statistic cycle

      Sends email reports on daily, weekly, monthly or annually basis

      Supports target filtering by height

    • General
    • Power

      12 VDC±20%, 12 VDC, 0.66 A, max. 8 W, Ø5.5mm coaxial power plug, reverse polarity protection

      PoE: 36 to 57 VDC, 802.3af, Class 3, 0.23 A to 0.14 A, max. 8.3 W

    • Dimension

      With -V: 168 mm × 61 mm × 41 mm (6.6" × 2.4\" × 1.6\" )

      Without -V: 168 mm × 61 mm × 36 mm (6.6 × 2.4\" × 1.4\") "

    • Package Dimension235 mm × 120 mm × 125 mm (9.2" × 4.7" × 4.9")
    • WeightApprox. 435 g (1 lb.)
    • With Package WeightApprox. 725 g (1.6 lb.)
    • Storage Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
    • Startup and Operating Conditions-30 °C to +45 °C (-22 °F to +113 °F). Humidity 95% or less (non-condensing)
    • Language32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
    • General FunctionAnti-flicker, heartbeat, mirror, password protection, watermark, IP address filter
    • Approval
    • EMC

      IC: IC-VoC(ICES-003 Issue 7:2020),

      FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B),

      KC: KN32:2015,KN35:2015,

      CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013),

      RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015

    • Safety

      EN CB: IEC 60950-1,

      UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014,

      LOA: SANS IEC60950-1,

      BIS: IS 13252(Part 1)2010+A1:2013+A2:2015,

      CE: CE-LVD(EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

    • EnvironmentRoHS Directive 2011/65/EU+2015/863
    • ProtectionWith -V model: IP67 (IEC 60529-2013)
