| Model |

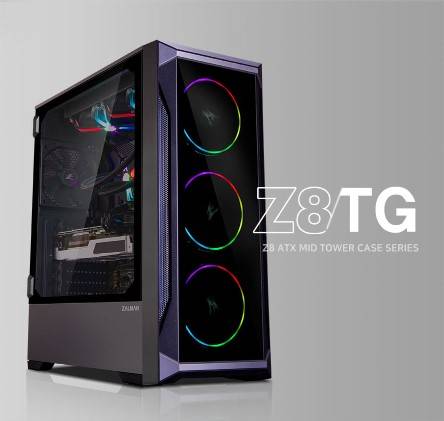

Z8 TG |
| Case Form Factor |
ATX Mid Tower |
| Dimensions |
460 x 212 x 493 (H) mm |
| Weight |
6.8kg |
| Materials |
Steel, Plastic, Tempered Glass |
| Motherboard Support |
E-ATX(~280mm) / ATX/ mATX/ Mini-ITX |
| Maximum VGA Length |
350mm |
| Maximum CPU Cooler Height |
160mm |
| Maximum PSU Length |
180mm |
| PCI Expansion Slots |
7 |
| Drive Bays |
2 x Combo (3.5″ or 2.5″, Toolless)
4 x 2.5″ |
| Fan Support |
Front : 3 x 120mm / 3 x 140mm
Top : 2 x 120mm/ 2 x 140mm
Rear : 1 x 120mm |
| Fan(s) Included |
Front : 3 x 120mm
Rear : 1 x 120mm |
| Radiator Support |
Front : 120mm
Top : 120mm / 240mm / 280mm
Rear : 120mm |
| I/O Ports |
2 x USB3.0, 1 x USB 2..0, 1 x Headphone Jack, 1 x Microphone Jack |
