| Model |

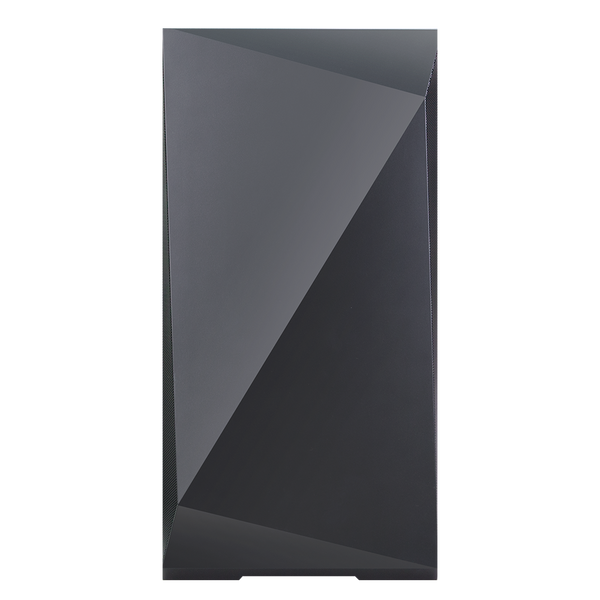

Z9 Iceberg_Black |
| Case Form Factor |
ATX Mid- Tower |
| Dimensions |
473(D) x 245(W) x 496(H)mm |
| Weight |
9.6kg |
| Materials |
Plastic, Steel, Tempered Glass |
| Motherboard Support |
E-ATX / ATX / M-ATX / Mini-ITX |
| Maximum VGA Length |
390mm |
| Maximum CPU Cooler Height |
185mm |
| Maximum PSU Length |
270mm |
| PCI Expansion Slots |
7 pcs
3 pcs (Vertical 65mm) |
| Drive Bays |
3.5” : 2 x 2.5” SSD/HDD or 3.5” HDD
2.5” : 3 x 2.5” SSD/HDD or 2 x 3.5” HDD |
| Fan Support |
Front : 3 x 120mm / 3 x 140mm / 2 x 200mm(H: 25mm)
Top : 3 x 120mm / 2 x 140mm
Rear : 1 x 120mm / 1 x 140mm |
| Fan(s) Included |
Front : 1 x 140mm
Rear : 1 x 140mm |
| Radiator Support |
Front : 120mm / 140mm / 240mm / 280mm / 360mm
Top : 120mm / 140mm / 240mm / 280mm / 360mm
Rear : 120mm / 140mm |
| I/O Ports |
USB3.0 x 2, USB2.0 x 2, USB 3.1 Gen2 Type-C x 1, MIC, HD AUDIO, LED Button, Reset Button, Power Button with HDD LED |
