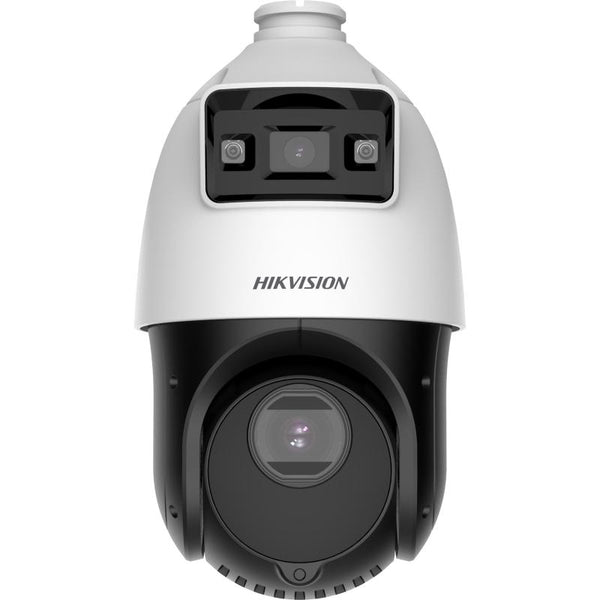

Hikvision DS-2SE4C415MWG-E/14(F0) TandemVu 4-inch 4 MP 15X Colorful & IR Network Speed Dome

Regular price Rs 21,500.00

Tax included.
  • Captures a large area and great details at the same time
  • High quality imaging with 4 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
  • Secures an expansive area with 15× optical zoom and 16× digital zoom
  • Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
  • Expansive night view with up to 100 m IR distance & 30 m white light
  • Supports 12V DC & PoE+
  • Focuses on human and vehicle targets classification based on deep learning
  •

  •

  •

  •

  •

  •

  •




    • Camera
    • Image Sensor[Bullet channel]: 1/3" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
    • Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
    • Min. Illumination

      [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

      [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR

    • Shutter Speed1 s to 1/30,000 s
    • Day & NightICR
    • Zoom[PTZ channel] 15 × optical, 16 × digital
    • Slow Shutteryes
    • Lens
    • Focal Length[Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 72 mm, 15 × optical
    • FOV

      [Bullet channel]: Horizontal field of view: 96.1°, Vertical field of view: 52.1°,Diagonal field of view: 113.3°;

      [PTZ channel]:

      Horizontal field of view: 55° to 4° (wide-tele),

      Vertical field of view: 33° to 2.2° (wide-tele),

      Diagonal field of view: 61.5° to 4.6° (wide-tele)

    • Focussemi-auto||manual||auto
    • Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.6
    • Zoom Speed[PTZ channel]: approx. 2.3 s
    • Illuminator
    • Supplement Light Type[PTZ channel]: IR; [Bullet channel]: White Light
    • Supplement Light Range[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
    • Smart Supplement LightYes
    • PTZ
    • Movement Range (Pan)360°
    • Movement Range (Tilt)-15° to 90° (auto flip)
    • Pan Speedpan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
    • Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
    • Proportional Panyes
    • Presets300
    • Preset Freezingyes
    • Patrol Scan8 patrols, up to 32 presets for each patrol
    • Pattern Scan4 pattern scans
    • Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
    • 3D Positioningyes
    • PTZ Status Displayyes
    • Scheduled Taskpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
    • Power-off Memoryyes
    • Video
    • Main Stream

      [Bullet channel]:

      50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

      60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

      [PTZ channel]:

      50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

      60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

    • Sub-Stream

      [Bullet channel]:

      50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

      60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

      [PTZ channel]:

      50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

      60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

    • Third Stream

      [Bullet channel]:

      50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

      60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

      [PTZ channel]:

      50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

      60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

    • Video CompressionH.265||H.264||MJPEG
    • Video Bit Rate32 kbps to 16384 kbps
    • H.264 Typebaseline profile||main profile||high profile
    • H.265 Typemain profile
    • Scalable Video Coding (SVC)yes
    • Region of Interest (ROI)8 fixed regions for each stream
    • Audio
    • Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
    • Audio Bit Rate32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
    • Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
    • Environment Noise Filteringyes
    • Network
    • ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour||WebSocket||WebSockets
    • Simultaneous Live View20
    • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
    • User/Host32
    • SecurityAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
    • Network StorageNAS (NFS, SMB/ CIFS)|| ANR||ANR
    • ClientiVMS-4200||Hik-Connect
    • Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+
    • Image
    • Image Parameters SwitchYes
    • Image Settingssharpness, saturation, brightness, contrast
    • Day/Night Switchday, night, auto, scheduled-switch
    • Wide Dynamic Range (WDR)120 dB
    • SNR≥ 52 dB
    • DefogDigital defog
    • Image StabilizationEIS
    • Image EnhancementBLC,HLC,3D DNR
    • Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
    • Regional FocusYes
    • Regional ExposureYes
    • Interface
    • Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
    • On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
    • Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
    • Alarm1 alarm input, 1 alarm output
    • Resetyes
    • Event
    • Basic EventMotion detection,video tampering alarm,exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot),alarm input and output
    • Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
    • Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
    • Deep Learning Function
    • Face Capture[Bullet channel] no,[PTZ channel] yes
    • General
    • Power12 VDC, PoE+
    • DimensionØ 166 mm × 375 mm (Ø 6.5" × 14.7")
    • WeightApprox. 2.4kg (13.2 lb.)
    • MaterialADC12
    • Operating Condition-30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
    • General Functionmirror,watermark,IP address filter,password protection
    • DemistDemist by heating the glass
    • Power Consumption and CurrentMax. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
    • Approval
    • ProtectionIP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
