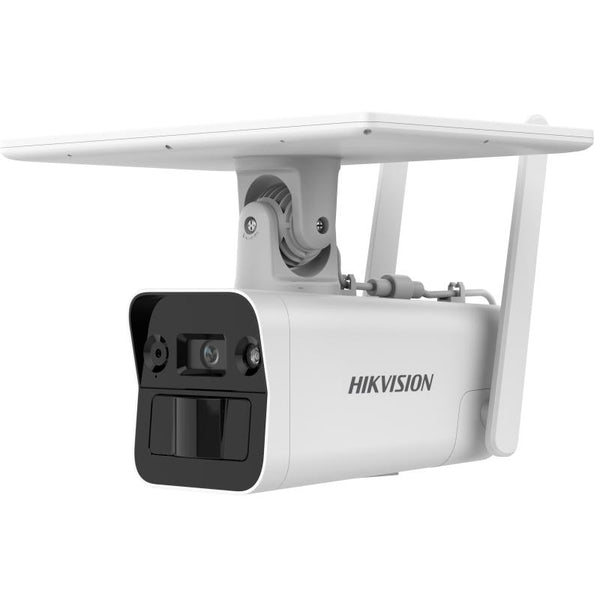

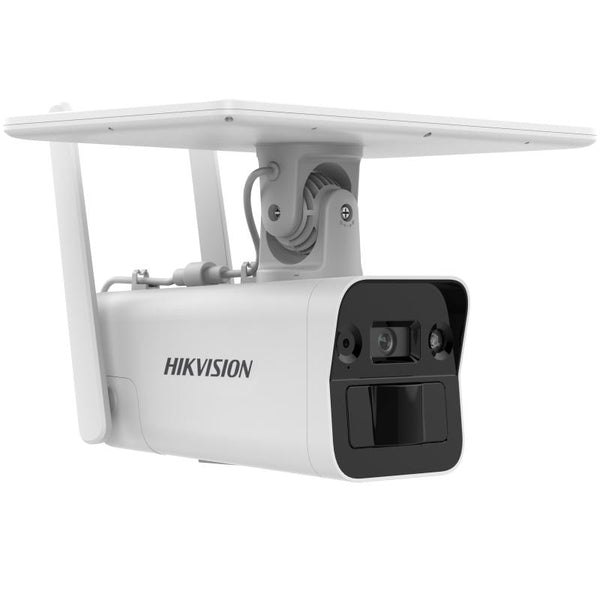

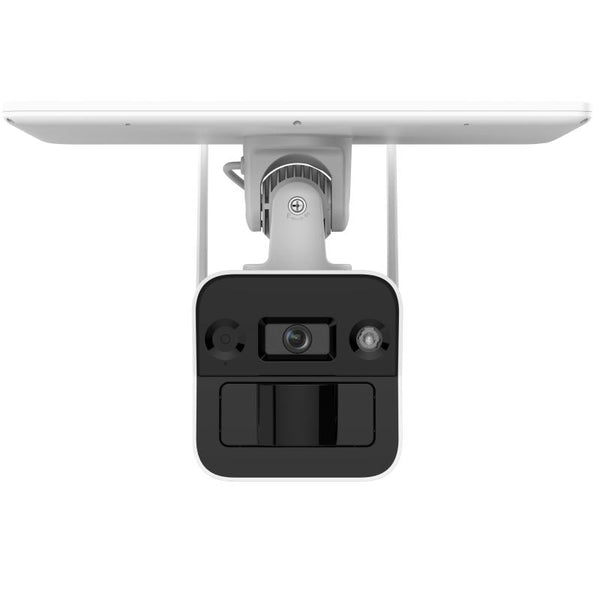

Hikvision DS-2XS2T41G1-ID/4G 4MP Solar-powered Security Camera Setup

Regular price Rs 9,900.00

Tax included.
  • High quality imaging with 4 MP resolution
  • Standalone with solar panel and built-in battery
  • Support human and vehicle detection
  • Provide real-time security via built-in two-way audio
  • Water and dust resistant (IP67)
  • Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA) communication
  •

  •

  •

  •

    • Camera
    • Image Sensor1/3" Progressive Scan CMOS
    • Max. Resolution2560 × 1440
    • Min. IlluminationB/W: 0.01 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    • Shutter Time1/3 s to 1/100,000 s
    • Day & NightIR cut filter
    • Angle AdjustmentSolar panel: tilt: -45° to 45°, rotate:-30° to 30°
    • Lens
    • Lens TypeFixed focal lens, 4 and 6 mm optional
    • Iris TypeFixed
    • Aperture4mm: F1.28, 6mm: F1.6
    • Depth of Field

      4 mm: 2.7 m to ∞

      6 mm: 5.9 m to ∞

    • Focal Length & FOV

      4 mm, Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

      6 mm, Horizontal FOV: 49°, Vertical FOV: 26°, Diagonal FOV: 57°

    • Lens MountM12
    • DORI
    • DORI

      4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

      6 mm, D: 128 m, O: 50 m, R: 25 m, I: 12 m

    • Illuminator
    • Supplement Light TypeIR
    • Supplement Light RangePerformance mode: up to 30 m, proactive mode: up to 10 m
    • IR Wavelength850 nm
    • Smart Supplement LightYes
    • Video
    • Main Stream

      50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

      60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    • Sub-Stream

      50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)

      60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

    • Video Compression

      Main stream: H.265/ H.264,

      Sub-stream: H.265/H.264/MJPEG,

      H.264+ and H.265+: main stream supports under performance mode

    • Video Bit Rate32 Kbps to 8 Mbps
    • H.264 TypeBaseline Profile,Main Profile,High Profile
    • H.265 TypeMain Profile
    • Bit Rate ControlCBR,VBR
    • Region of Interest (ROI)1 fixed region for main stream
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Audio
    • Audio Sampling Rate8 kHz/16 kHz
    • Environment Noise FilteringYes
    • Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
    • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    • Network
    • APIISAPI,SDK,ISUP,OTAP
    • SecurityPassword protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
    • Simultaneous Live ViewUp to 6 channels
    • ProtocolsTCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
    • User/Host

      Up to 32 users

      3 user levels: administrator, operator, and user

    • Network StorageAuto Network Replenishment (ANR)
    • ClientiVMS-4200,Hik-Connect,Hik-Central
    • Web Browser

      Plug-in required live view: IE 10, IE 11,

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

      Local service: Chrome 57.0+, Firefox 52.0+

    • Mobile Communication
    • SIM Card TypeMicro SIM
    • Uplink and Downlink Data RateCat 4, uplink: 50 Mbps, downlink: 150 Mbps
    • Frequency

      EU:

      LTE-TDD: B38/B40/B41

      LTE-FDD: B1/B3/B5/B7/B8/B20/B28

      WCDMA: B1/B5/B8

      GSM: B3/B5/B8

      LA:

      LTE-TDD: B38/B40

      LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66

      WCDMA:B1/B2/B3/B4/B5/B8

      GSM: B2/B3/B5/B8

    • StandardLTE-TDD,LTE-FDD,WCDMA,GSM
    • Image
    • SNR≥ 52 dB
    • Wide Dynamic Range (WDR)Digital WDR
    • Day/Night SwitchDay,Night,Auto,Schedule
    • Image EnhancementBLC,HLC,3D DNR
    • Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
    • Transducer
    • Transducer TypePIR + Radar
    • Detection Angle4 mm : Horizontal: 80°, vertical: 42°,6 mm:Horizontal: 50°, vertical: 22°
    • Detection RangeUp to 12 m
    • Interface
    • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board Storage

      Built-in eMMC storage, up to 8 GB,

      Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 5 GB is available for recording.

    • Built-in MicrophoneYes
    • Built-in SpeakerYes
    • Reset KeyYes
    • Event
    • Basic EventMotion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
    • Linkage



      Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture,audible warning

    • General
    • Power

      Power Consumption and Current:

      Typical power scenarios: 1.85 W (4G working)

      Standby scenarios: 80 mW

      Max. power consumption: 7 W

      Power Supply:

      12 VDC

      *For debugging only

      6.5 W (deviation: ± 1 W) Solar panels

      Power Interface:

      Power supply interface: Ø5.5 mm coaxial power plug

      Extened solar panel: Ø5.5 mm coaxial power plug

    • MaterialPlastic
    • Storage Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
    • LanguageEnglish, Ukranian
    • General FunctionHeartbeat,mirror,flash log
    • Startup and Operating Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
    • Dimension213.7 mm × 292.4 mm × 188.7 mm (8.4" × 11.5" × 7.3")
    • Package Dimension345 mm × 240 mm × 292 mm (13.6" × 9.4" × 11.5")
    • Weight



      Approx. 1.42 kg (3.1 lb.)

    • With Package Weight



      Approx. 2.07 kg (4.6 lb.)

    • Battery
    • Battery TypeTernary Lithium
    • Capacity51.46 Wh
    • Max. Charging Voltage12.6 V
    • Operating Temperature

      Charging: 0 °C to 45 °C (32 °F to 113 °F)

      Discharging: -20 °C to 50 °C (-4 °F to 122 °F)

    • Battery Voltage8.1 V to 12.6 V
    • Battery LifeMore than 800 cycles
    • Cycle Lifetime



      Proactive mode: 1.5 days,

      Standby mode: 11 days

    • Battery WeightApprox. 185 g (0.4 lb.)
    • Approval
    • EMC



      CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

      RCM: AS/NZS CISPR 32: 2015,

      *CE and RCM certifications are only for the device sold in the European region.

    • RF

      CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)

      *CE certification is only for the device sold in the European region.

    • Safety



      CB: IEC 62368-1: 2014+A11,

      CE-LVD: EN 62368-1: 2014/A11: 2017,

      LOA: IEC/EN 60950-1,

      *CE and LOA certifications are only for the device sold in the European region.

    • Environment

      CE-RoHS: 2011/65/EU,

      WEEE: 2012/19/EU,

      Reach: Regulation (EC) No 1907/2006,

      *CE certification is only for the device sold in the European region.

    • ProtectionIP67: IEC 60529-2013
