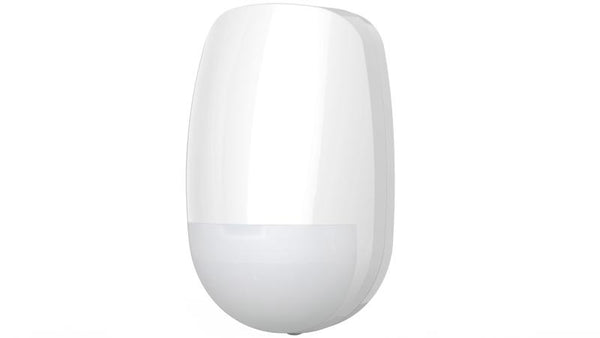

Hikvision DS-PDD12P-EG2 Wired Dual-tech Detector

Hikvision DS-PDD12P-EG2 Wired Dual-tech Detector

Rs 1,100.00

Tax included.
  • Detection Range: 12m / 85.9°
  • Up to 30kg pey immunity
  • Automatic sensitivity
  • Digital temperature compensation
  • 52 zones of 3D optics including creep-zone protection, full coverage without dead angle
  • selectable EOL resistors for alarm and tamper-proof wiring
  • Sealed optics preventing insect interference
  • 24Ghz microwave
  • 9 to 16 V wide voltage adaptation with polarity reverse connection protection
  • Wall/Ceiling-mounting brackets available (sold separately)
  • IFT technology prevents false alarms

    • Detection Performance
    • Detection MethodPassive Infrared;Microwave
    • Detection Range12m
    • Detection Angle85.9°
    • Detection Zones52
    • Detectable Speed0.3～2m/s
    • SensitivityAuto;Pet
    • Pet Immunity30Kg
    • White Light Filter6500lux
    • Microwave Frequency24GHz(24.15～24.25GHz)
    • Digital Temperature CompensationSupport
    • Creep Zone ProtectionSupport
    • Feature
    • Digital ProcessingSupport
    • Sealed OpticsSupport
    • Tamper ProtectionFront
    • Interface
    • Alarm OutputNormally Closed
    • LED IndicatorGreen(PIR), Orange(Microwave), Blue(Alarm)
    • Transmission
    • Transmission MethodWired
    • Electrical Characteristics
    • Power Supply9 to 16 VDC
    • Typical Voltage12 VDC
    • Power Consumption

      Maximum current：17mA@12VDC

      Quiescent current：17mA@12VDC

    • General
    • Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
    • Operation Humidity10% to 90%
    • Dimension(WxHxD)65.7 mm (2.59 ") × 103.8 mm (4.09 ") × 45.5 mm (1. 79 ")
    • Weight99g (3.5 oz)
    • Mounting Height1.8 m to 2.4 m
    • Mounting MethodWall
    • Application ScenarioIndoor
    • BracketOptional wall & ceiling accessory
